TMR Customs universal link kits have been designed with the latest CAD Software, and all the components are manufactured from the highest grade materials.
This kit is ideal for swapping aftermarket axles or upgrading from your current suspension system. We've built our kit with adjustability in mind, allowing you to dial in your suspension for the ultimate in off-road performance.
Designed to be paired with coilover shocks, air shocks, or standard coil springs...all of which can be purchased thru our retail or online store.
The kit is designed for a 4" tall frame rail (Perfect for Jeep TJ,YJ, CJ & Bronco), but can easily be modified to fit other sizes.

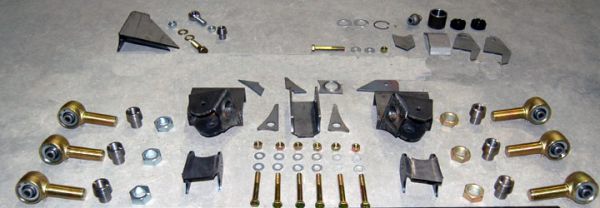

Includes the following:
- Universal 3-Link Frame Mount Brackets (SKU # 1099)
- Lower Control Arm Brackets - 10Deg Offset (SKU # 1103)
- Axle Mounted Upper Control Arm Bracket (SKU # 1112)
- 3 x Right Hand Currie Enterprises Forged Johnny Joints with massive 1.25" shank (SKU # CE-9114)
- 3 x Left Hand Currie Enterprises Forged Johnny Joints with massive 1.25" shank (SKU # CE-9114L)
- 3 x Right Hand 1.25" Tube Adapters (2 X 2"OD, 1.5"ID, 1 X 1.75"OD, 1.5"ID)
- 3 x Left Hand 1.25" Tube Adapters (2 X 2"OD, 1.5"ID, 1 X 1.75"OD, 1.5"ID)
- 3 x Right Hand 1.25" Jam Nuts
- 3 x Left Hand 1.25" Jam Nuts
- Universal Frame Mount Trackbar Bracket (SKU # 1107)
- Universal Axle Mount Trackbar Bracket (SKU # 1108)
- 2 x 7/8" Chromoly Rod End (1 X XMR12-14, 1 X XML12-14)
- 4 x High Misalignment Spacers (1 PAIR 3/4"-9/16" X 2", 1 PAIR 3/4"-9/16" X 2.625")
- 2 x 7/8"-14 Tube Adapter
- 2 x 7/8" Jam Nut
- All associated Grade 8 Bolts, Nuts, & Washers (7 X 9/16"-18 X 4" GRADE 8 BOLT PACKAGE, 1 X 9/16"-18 X 3" GRADE 8 BOLT PACKAGE)
KIT DOES NOT INCLUDE TUBING!
